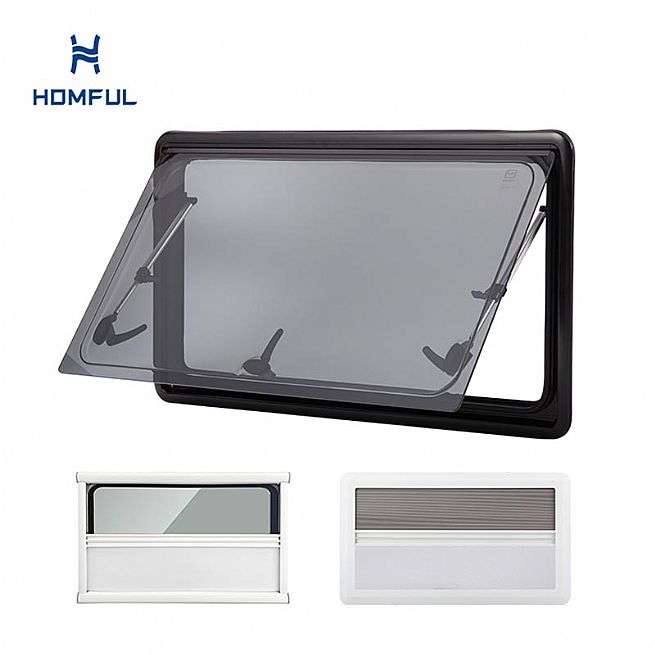

Integral Vision Window

Ref: 71C54N

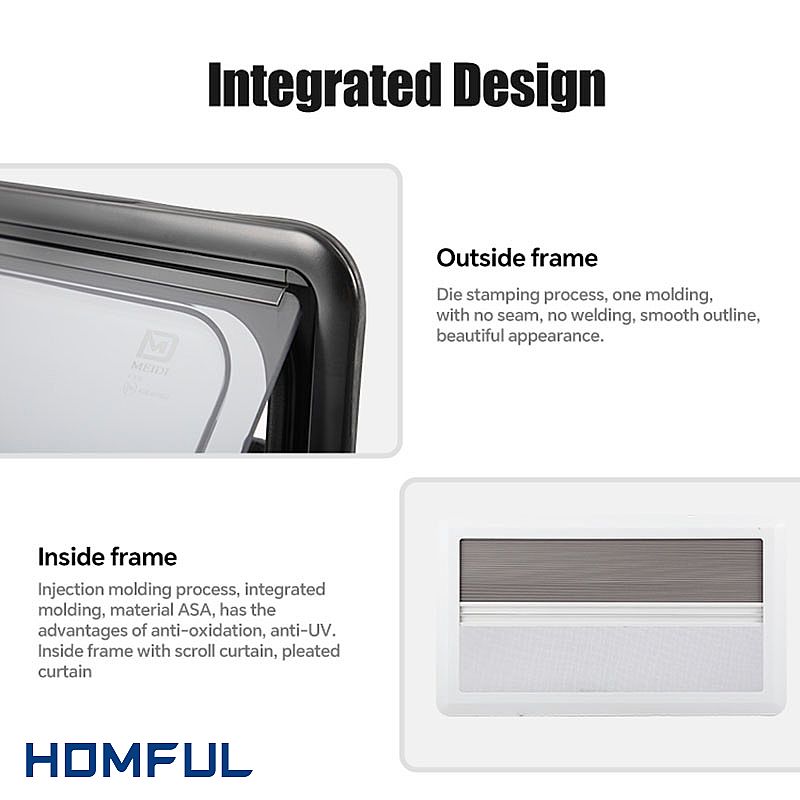

1. Integral one-piece molding, the outer frame is stamping pressed, and the inner frame is injection molded.
2. No seams, no welding, smooth counter, beautiful appearance.

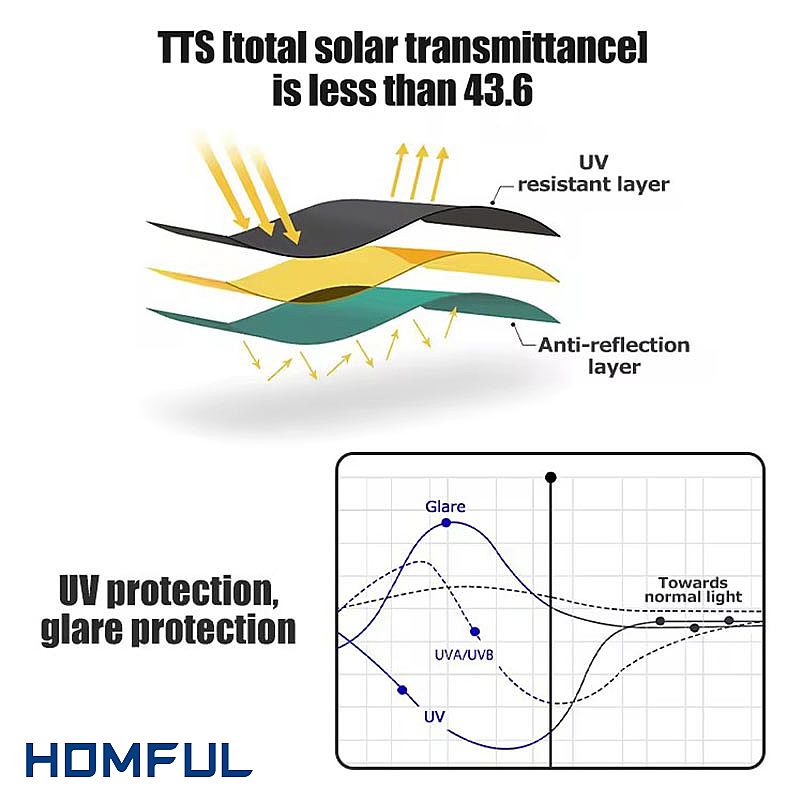

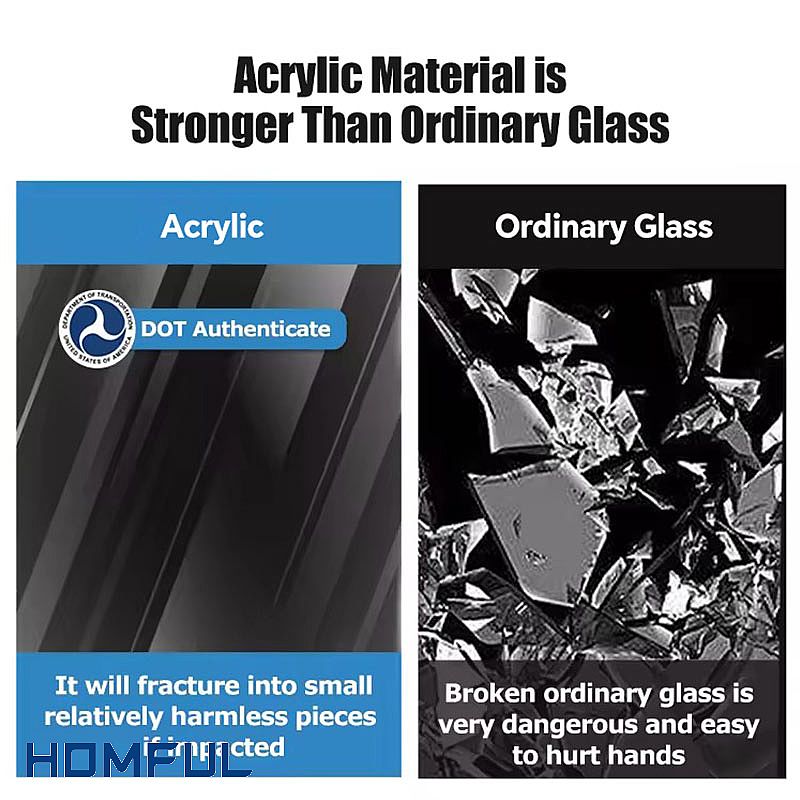

3. Double-blazing acrylic window, flat outside and convex inside or vice versa, UV resistant, EU certified.

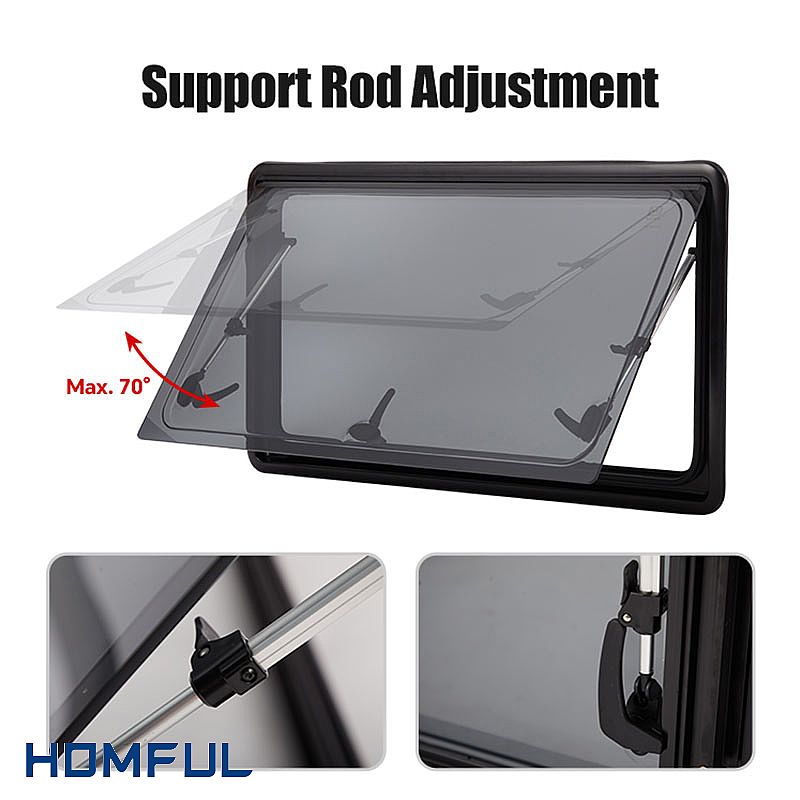

4. Open at an arbitrary angle, with a low damage rate, the maximum open angle is 70 degrees.
5. Open easily with a 2-gear handle switch. Suitable for wall thickness: 25-35mm, 35-45mm, 45-55mm.
6. Clip the wall with screws and plastic blocks (equipped with inner lining, no need to drill the wall).
7. Suitable for integral scroll blind and flyscreen.

Contact Us

Integral Vision Window
Ventana de visión integral - 71C54N Ventana de visión integral - 71C54N Ventana de visión integral - 71C54N Ventana de visión integral - 71C54N Ventana de visión integral - 71C54N

.

Product Information

Item Details
Model Number 71C54N
Material Aluminum alloy frame + Double blazing acrylic glass
Size 900x500mm
Color Black
Type Side Window

HOMFUL has been a supplier and manufacturer of motorhome products for over 15 years. The quality and feedback are excellent.

We can customize products according to your requirements, we provide OEM, ODM, and other global procurement and resource integration services.

We customize unique design and marketing solutions for our clients to meet the needs of different markets.
We aim to help our clients achieve maximum benefit and career success.

FAQ

Q: Can I get one sample? Should I pay for it?
A: The sample is free. You only have to bear the shipping cost. The sample cost will be refunded as soon as you place the official order.

Q: What is the delivery time?
A: 2-7 days for sample and 10-30 days for mass production.

Q: Can I appoint the color or have my logo on the product?
A: OEM & ODM are welcomed if the QTY is more than 1000PCS.

Q: How do you inspect the product during production?
A: We have a QC department to follow raw material and finished inspection. Special inspection instruments in the lab to do the necessary tests. 3rd party inspection report to be done.

Q: What is your warranty?
A: We offer you 12 months warranty. The hard shell car rooftop tent will upgrade to 24 months warranty.

Q: What is the payment terms?
A: You can pay through Alibaba trade assurance, TT, Paypal, L/C, etc.

Item No Size Cut Out Corner Radius
71C54A 300*500 4R10
71C54B 500*300 4R10
71C54C 500*350 4R10
71C54D 450*500 4R10
71C54E 610*450 4R10
71C54F 500*450 4R10
71C54G 500*500 4R10
71C54H 600*600 4R10
71C54I 700*300 4R10
71C54J 700*400 4R10
71C54K 700*600 4R10
71C54L 700*800 4R10
71C54M 900*450 4R10
71C54N 900*500 4R10
71C54O 900*550 4R10
71C54P 900*600 4R10
71C54Q 900*900 4R10
71C54R 1000*500 4R10
71C54S 1000*600 4R10
71C54T 1000*800 4R10
71C54U 1100*450 4R10
71C54V 1100*550 4R10
71C54W 1200*350 4R10
71C54X 1200*500 4R10
71C54Y 1300*600 4R10
71C54Z 1450*550 4R10
